Visual Paradigm QueryBase seamlessly inherits user permissions and governance policies from the Visual Paradigm Cloud Workspace. This ensures secure model data access across your organization while providing an intuitive web UI to navigate projects, manage query execution, and inspect system architecture.
Navigating the QueryBase Workspace

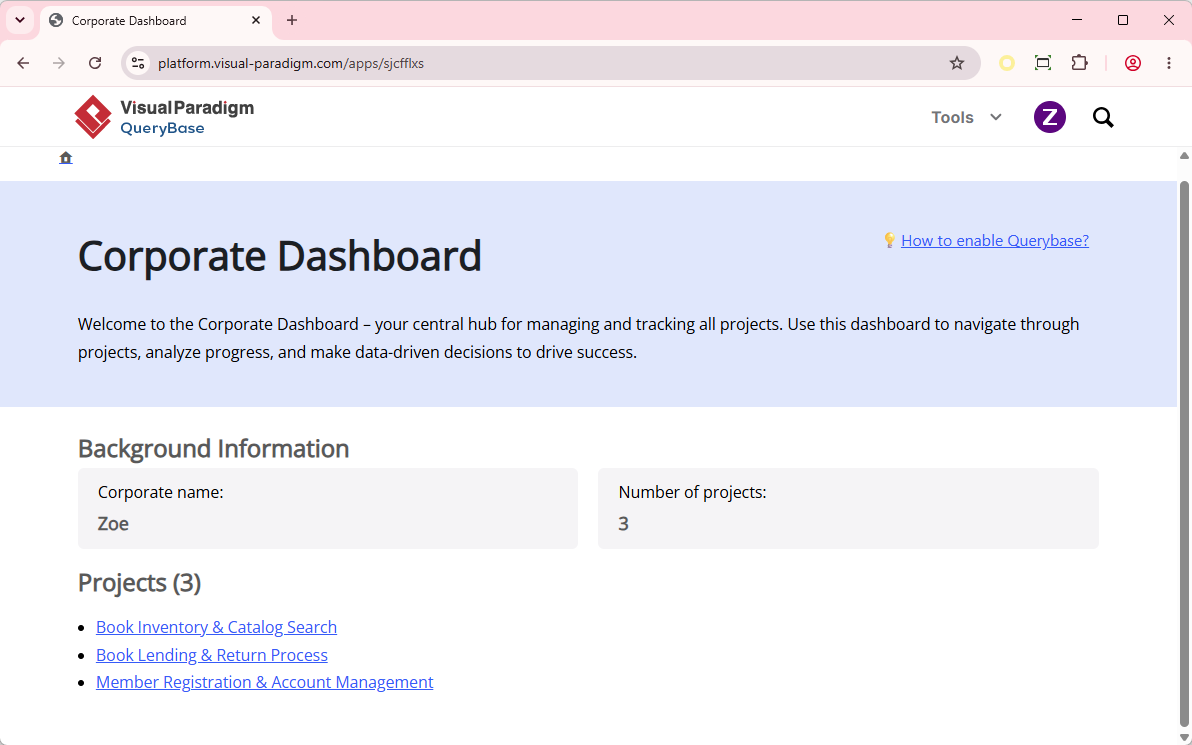

The QueryBase user interface is designed for immediate accessibility, enabling team members to locate projects, build queries, and extract structured data without complex training.1. Workspace Dashboard & Project Selector
Upon logging into QueryBase via your browser, the main workspace dashboard presents a centralized list of all synchronized projects you have permission to view. Use the workspace selector in the top navigation bar to switch between different team repositories or enterprise departments.

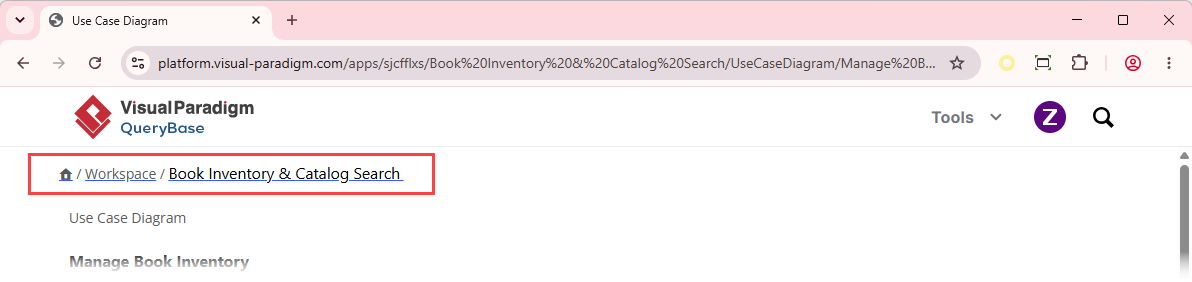

2. Contextual Breadcrumb Bar
Situated at the top of every project view, the breadcrumb trail keeps you grounded within complex system hierarchies. Click any segment in the breadcrumb path—such asWorkspace > Project > Diagram > Shape—to instantly jump across architectural levels.

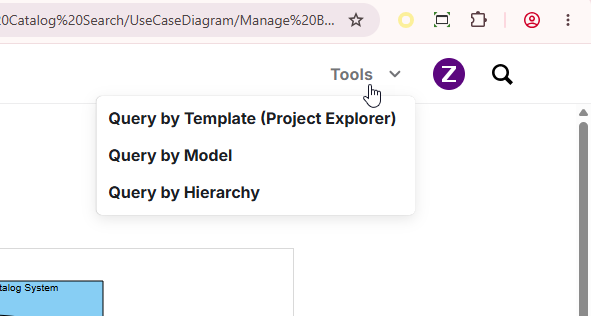

3. Tool Switcher Sidebar
A dedicated sidebar gives instant access to QueryBase’s three core querying modalities:- Query by Template (Project Explorer): Interactive visual browsing and conditional search.
- Query by Model: Multi-step chained graph traversal pipelines.
- Query by Hierarchy: Structured tree formatting and property configuration.
