Building Your First Chained Query: Step-by-Step

Chained model queries in QueryBase allow you to mine interconnected project models by linking sequential filters together into a continuous pipeline. This guide walks you through constructing a complete 3-step chained query using a real-world Use Case diagram scenario: isolating an Actor, traversing its Association relationships, and extracting all connected Use Cases.

Example Scenario Goal

In your Visual Paradigm Cloud workspace, you have a large enterprise project containing numerous diagrams. Your goal is to generate a clean JSON list of every Use Case connected specifically to the “Member” Actor, without manually reviewing every diagram or extracting unrelated elements.
Pipeline Strategy: Filter Actor ("Member") → Traverse Connected Associations → Retrieve Connected Use Cases

Step-by-Step Query Construction

Step 1: Base Element Filtering (Seed Selection)

The first query in the chain establishes the starting point (seed data) by filtering for the target element.

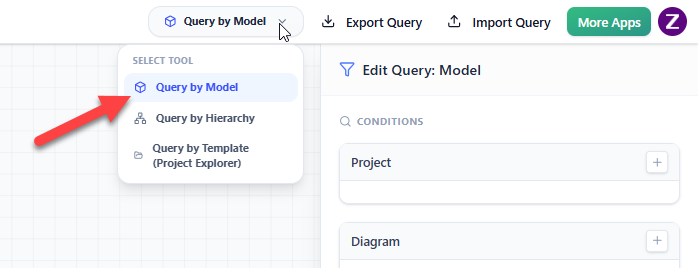

  1. Open QueryBase from your workspace and navigate to Query by Model in the top menu.

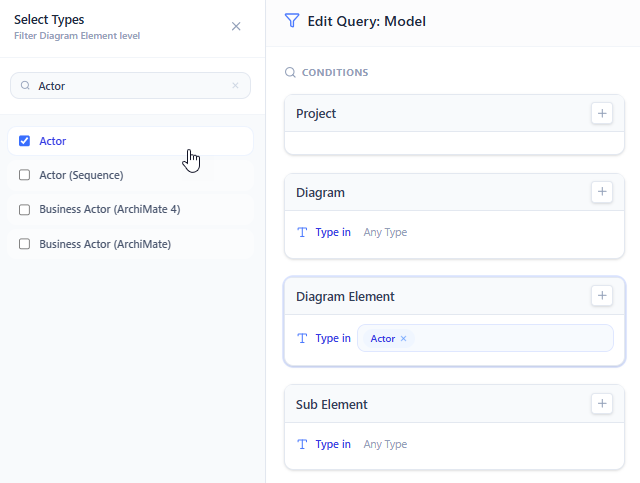

  2. Set the Element Type filter to Actor in the first query.

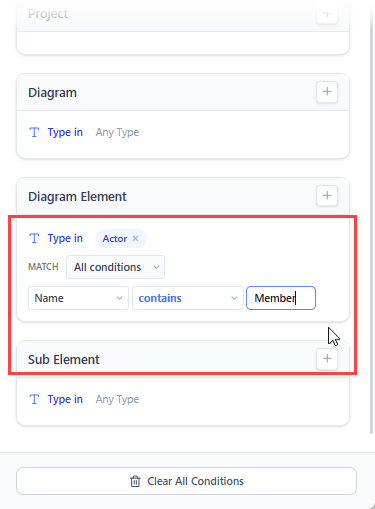

  3. Add a condition: Name Contains "Customer".

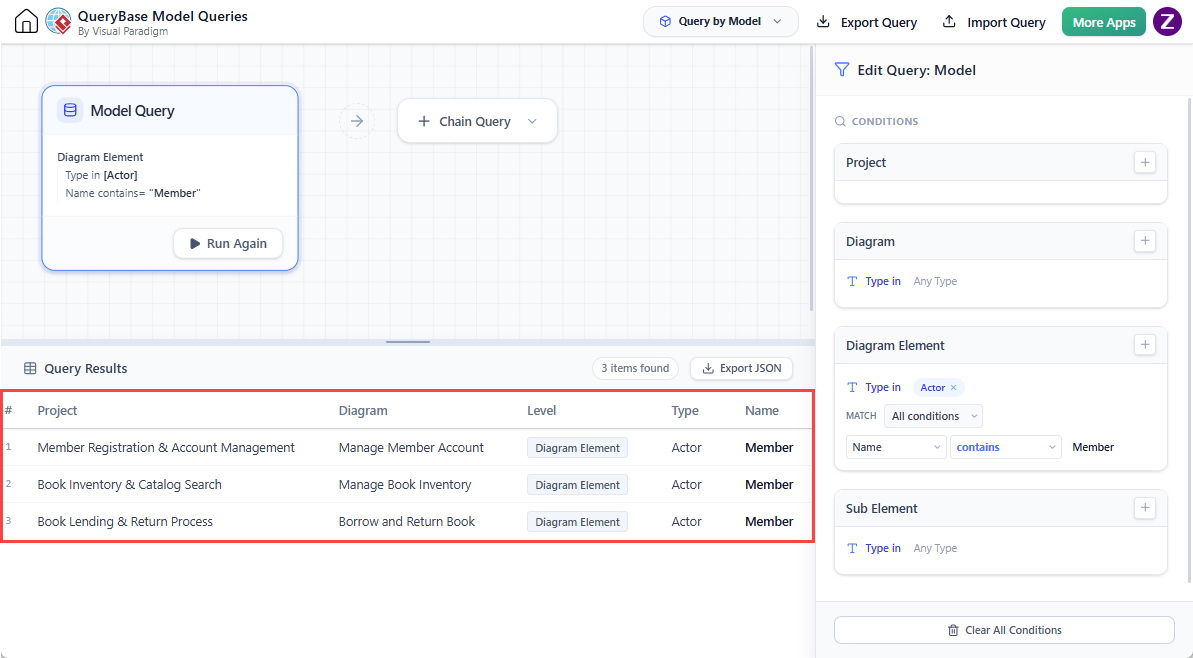

Outcome of Step 1: QueryBase isolates all Actor shapes in your project named “Member” (or containing “Member”) and holds them as the seed input for Step 2

Step 2: Relationship Traversal (Path Following)

The second step follows the relationship lines attached to the seed elements identified in Step 1.

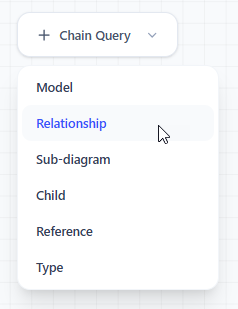

  1. Click + Chain Query to append Query 2 to your pipeline.
  2. Select Relationship to be the type of link.

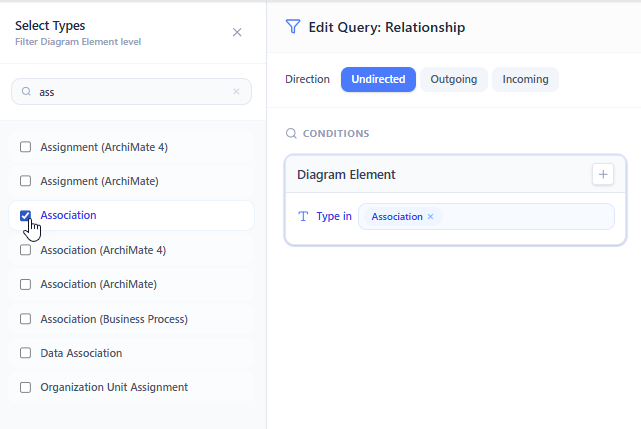

  3. Select Association to be the type of diagram element to query.

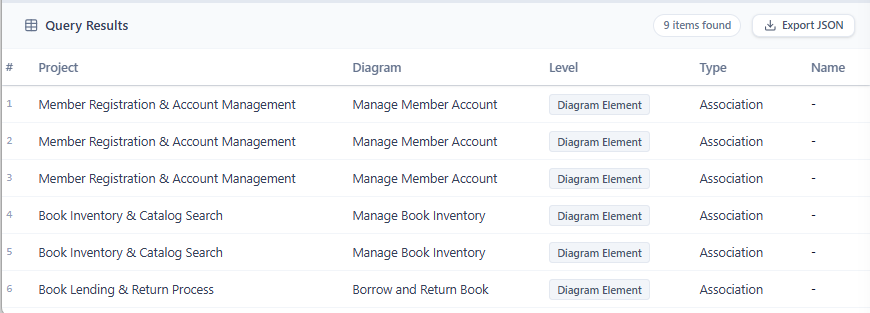

Outcome of Step 2: QueryBase traverses outward from the “Member” Actor elements and gathers every Association line connected to them.

Step 3: Target Model Retrieval (Destination Extraction)

The third step extracts the target shapes attached to the far end of the relationships gathered in Step 2.
  1. Click + Chain Query to append Query 3.
  2. Select Model to be the type of link.

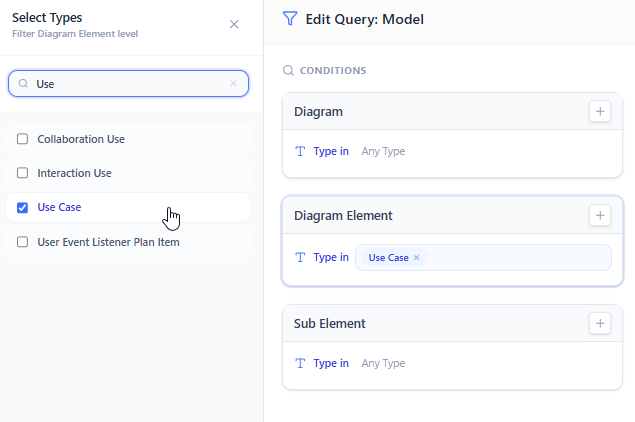

  3. Select Use Case to be the type of diagram element to query.

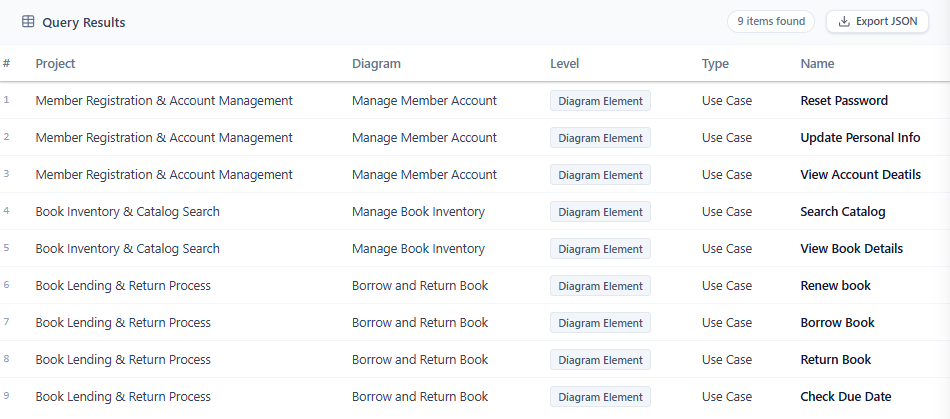

Outcome of Step 3: QueryBase resolves the opposite side of each Association relationship, yielding the final, filtered list of target Use Cases linked directly to the “Member” Actor.

Executing the Chain & Inspecting Results

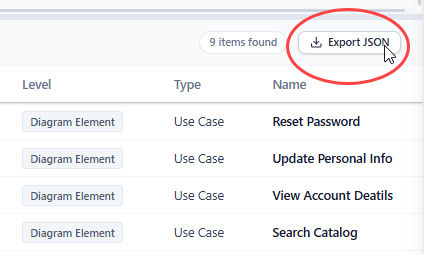

Once all three query steps are linked in the editor, you can export JSON for your result.

Key Takeaways & Next Steps

  • Chains Flow Sequentially: The output of Step N becomes the direct evaluation context for Step N+1.
  • Filter at Each Stage: Narrow down types or properties at each step to prevent broad or noisy graph results.
  • Export Anywhere: Save your chain configuration for repeated executions or export the JSON output for downstream processing.
